FEATURES Triaxial, digital gyroscope, ±450°/sec dynamic range
±0.05° orthogonal alignment error
5.1°/hr in-run bias stability
0.26°/√hr angular random walk
0.01% nonlinearity
Triaxial, digital accelerometer, ±18 g
Triaxial, delta angle and delta velocity outputs
Triaxial, digital magnetometer, ±2.5 gauss
Digital pressure sensor, 300 mbar to 1100 mbar
Fast start-up time, ~500 ms
Factory-calibrated sensitivity, bias, and axial alignment Calibration temperature range: −40°C to
+85°C SPI-compatible serial interface
序号 |
技术参数 |
指标 |
1 |
品牌: |
ADI |
2 |
型号: |

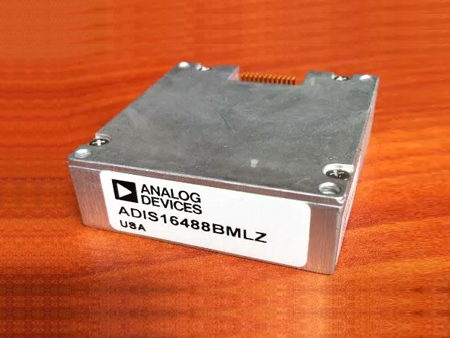

ADIS16488BMLZ |
3 |
制造商: |
Analog Devices Inc. |
4 |
产品种类: |
IMU-惯性测量单元 |
5 |
RoHS: |
是 |
6 |
传感器类型: |
10-axis |
7 |
传感轴: |
X, Y, Z |
8 |
灵敏度: |
3.052 deg/s/LSB |
9 |
加速: |
18 g |
10 |
输出类型: |
Digital |
11 |
接口类型: |
SPI |
12 |
分辨率: |
32 bit |
13 |
电源电压-最小: |
3 V |
14 |
电源电压-最大: |
3.6 V |
15 |
最小工作温度: |
- 55 C |
16 |
最大工作温度: |
+ 105 C |
17 |
封装 / 箱体: |
ML-24 |
18 |
带宽: |
330 Hz |
19 |
陀螺仪范围: |
+/- 450 deg/s |
