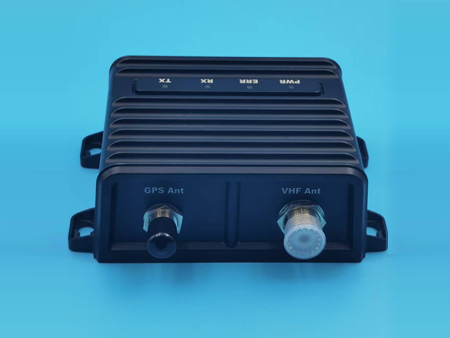

1、Product Overview
HS-MX6208GT is the newest marine AIS transceiver system product that integrates SOTDMA and CSTDMA(Automatic Identification System)technology to meet the market demands of next-generation ships and shore-based communication networks,providing important and effective navigation assistance and communication method for ship pilots and shore-based management.
The system product allows the ship or shore-based system to receive AIS data of other ships, base stations or navigation beacons in its vicinity, and can receive AIS data information including the ship name, course, velocity and current navigation status of ships in the area which covered by the equipment.
HS-MX6208GT supports excellent performance, ultra-low power consumption and compact size. It can be used in the shipborne black boxes and onshore compact base stations to support AIS data management and services, smart boat/marine IOT and other smart maritime application requirements.
2、Main Features
- Support AIS Class B with 2W CSTDMA and 5W SOTDMA.
- Can extend to support AIS AtoN and Virtual AtoN.
- Integrated on-board GNSS positioning module.
- Provide multiple interfaces including NMEA2000, NMEA0183, GNSS, VHF and Power.
- Can upgrade the software via the NMEA0183 port and control the device,
- Automatically receive AIS information from other vessels, VTS shore stations,AtoN and other equipment. Also, position, heading, velocity and other information can be analyzed,and exchange to the standard format of AIS message.
- Support data collection and transmission functions.
- Can sent data to the multi-functional display and other shipborne equipments,realize the ship-to-ship interconnection and ship-to-shore interconnection.
- Support data collection and transmission functions
- Meet IEC62287, ITU-RM 1371 standards
- Compact size (130mm x 64mm x 50.6mm)
3、Typical Performance
|
Parameter |
Ratings |
|
AIS 1 |
161.975MHz |
|
AIS 2 |
162.025MHz |
|
AIS Data Rate |
9600bps |
|
Modulation |
GMSK |
|
Frequency Error |
≤±0.5KH z |
|
Tx Output Power |
2W CSTDMA/ 5W SOTDMA |
|
Spurious Emission |
≤0.25uW |
|
Rx Sensitivity |
≤-119dBm @12dB SINAD |
|
Co-suppression |
0~-10dB |
|
Adjacent Channel Selectivity |
＞70dB |
|
Spurs Suppression |
＞70dB |
|
Intermodulation Distortion |
＞65dB |
|
Blocking |
＞-23dBm |
|
Serial Port |
NMEA0183(38400bps) NMEA2000(250Kbps) |
|
Baud Rate |
38400bps |
|
Current |
200mA @ 12VDC (Typical) |
|
Power Supply |
9.6V ~24VDC |
|
Working Temperature |
-20℃ ~60℃ |

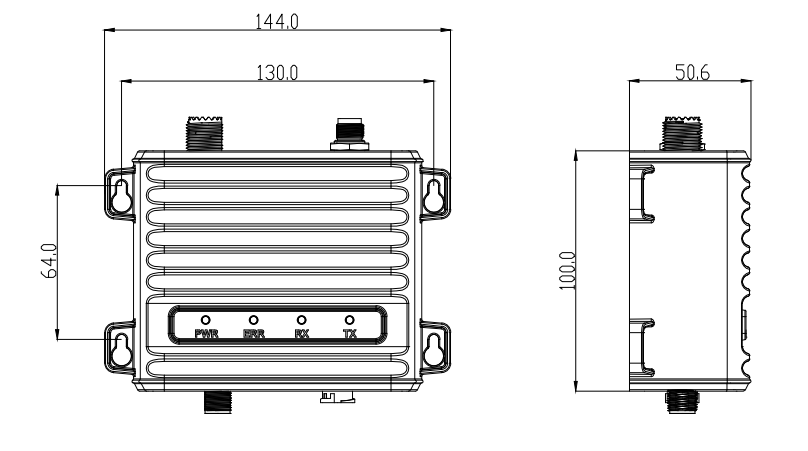

4、Product Dimensions(mm)

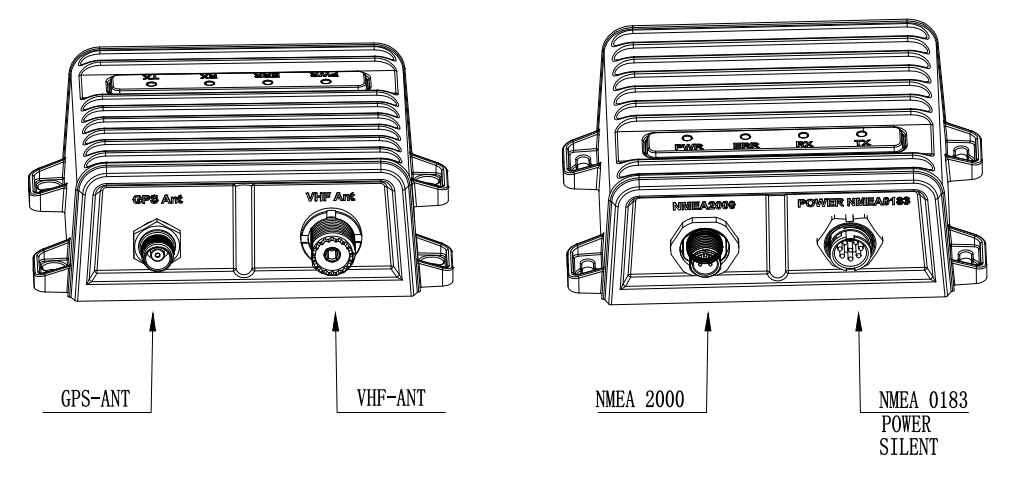

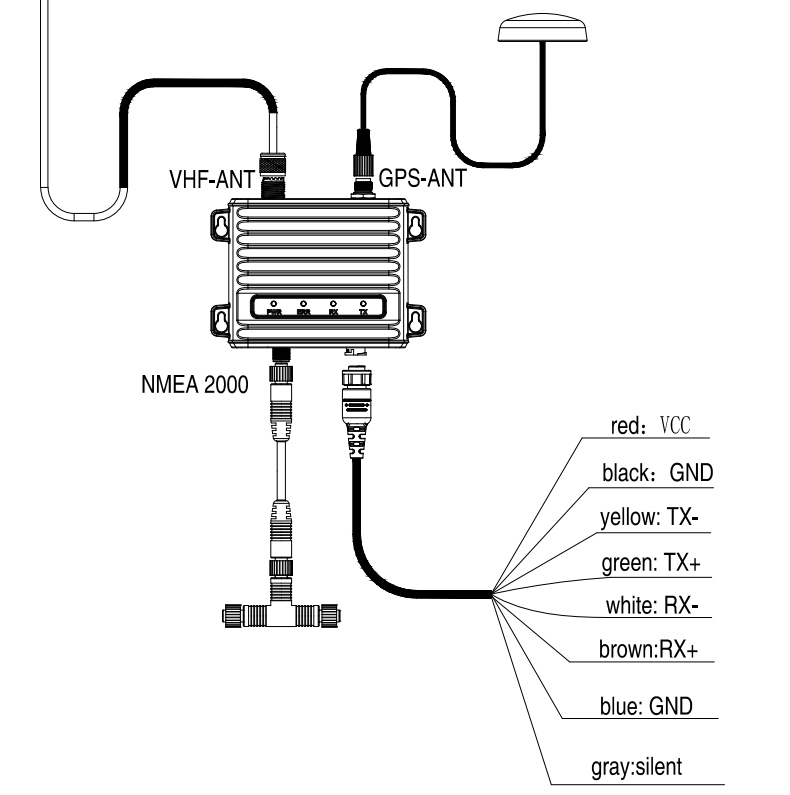

5、Connection Description
6、Interface Definitio

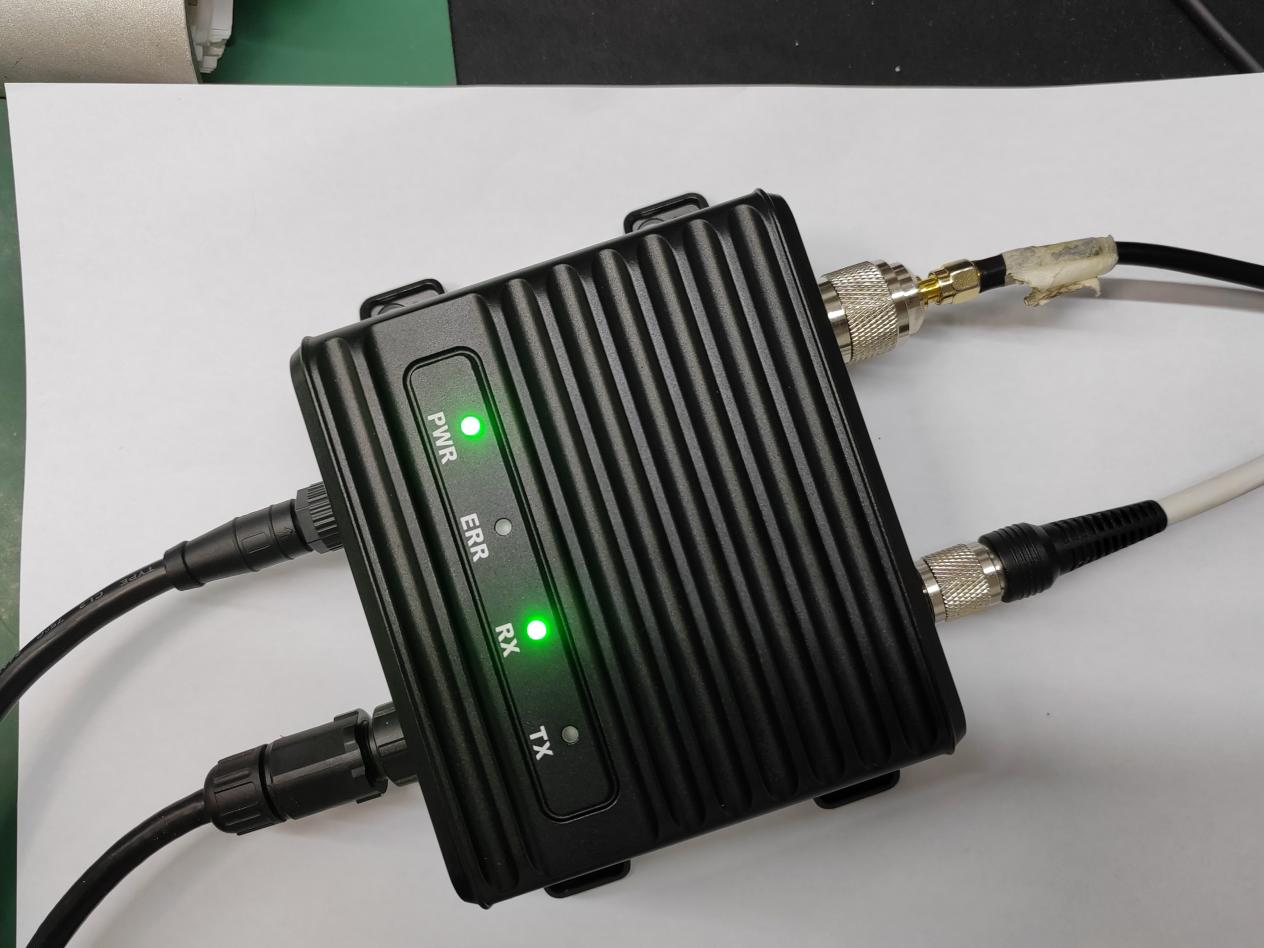

7、Status Indicator Light Description
|
Indicator |
Light |
Description |
|
Power |
Green, steady |
The device has been powered up correctly. By USB power, the Power LED does not light, showing that the device is in low power mode. |
|
Tx/Silent |
Green, flashing |
The device is transmitting AIS data. The flashing interval varies depending on vessel speed. |
|
Orange, steady |
The device is in silent mode, no AIS transmis- sion at all. |
|
|
Rx |
Green, flashing |
The device is receiving AIS data. |
|
Error |
Red, steady |
MMSI is not properly programmed. |
|
Red, flashing |
A BIIT system error is detected, referring to chapter “Built-in integrity test (BIIT) page 25, or by USB power. |

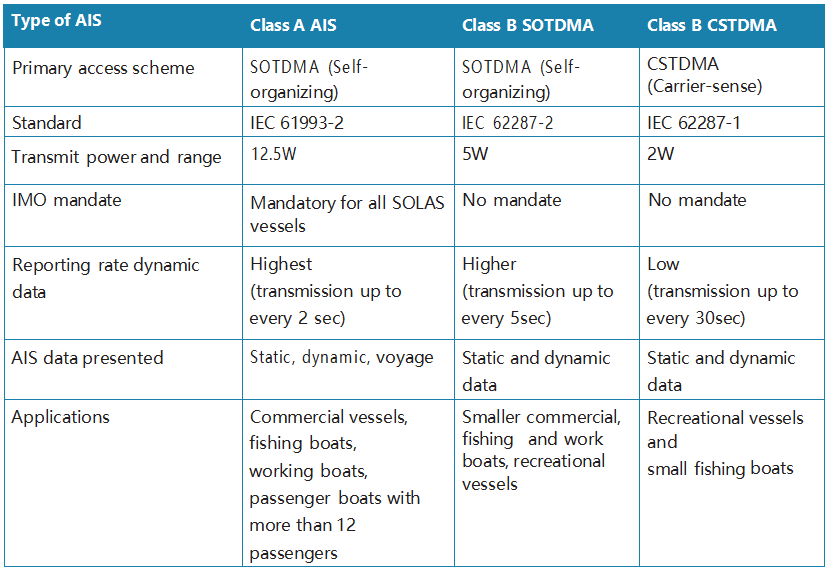

8、Class A vs. SOTDMA Class B vs. CSTDMA Class B
A brief comparison between class A and class B AIS is illustrated in the following table.
HS-MX6208GT is a SOTDMA & CSTDMA Class B AIS transponder.
9、Sample Test Guidance
MMSI for the working sample HS-MX6208GT as below:
3# MMSI:413100003
4# MMSI:413100004
5# MMSI:413100005
6# MMSI:413100006

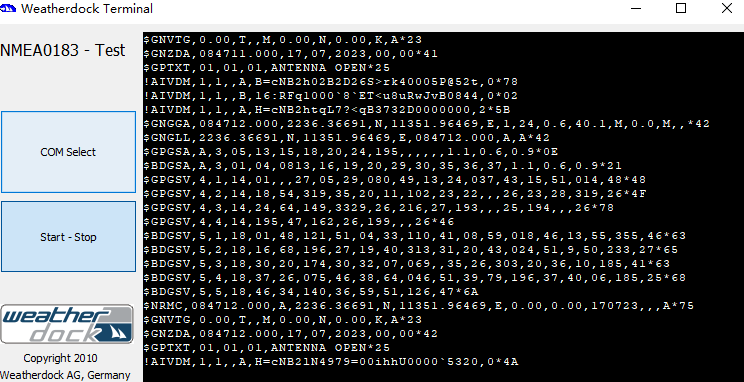

9.1 NMEA0183 Test

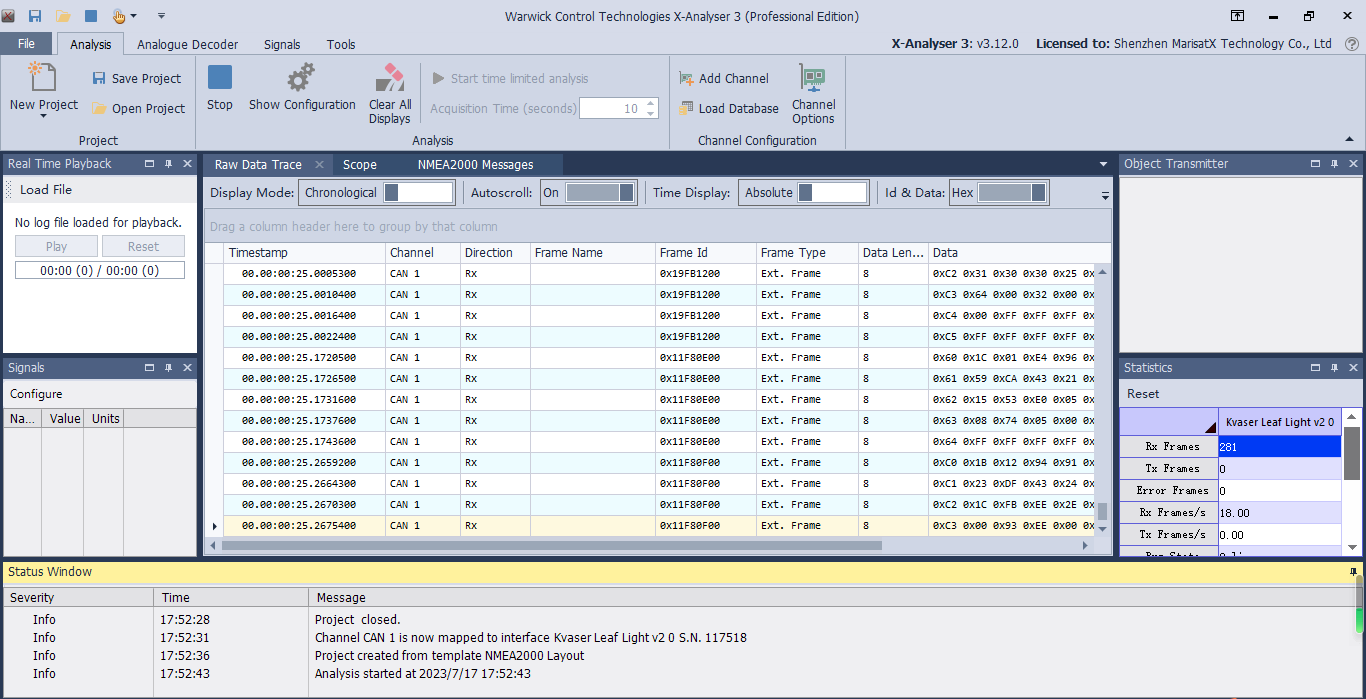

9.2 NMEA2000 Test
9.3 MFD Test
9.3.1 The following tools need to be prepared before testing
1） CAN Bus Interface

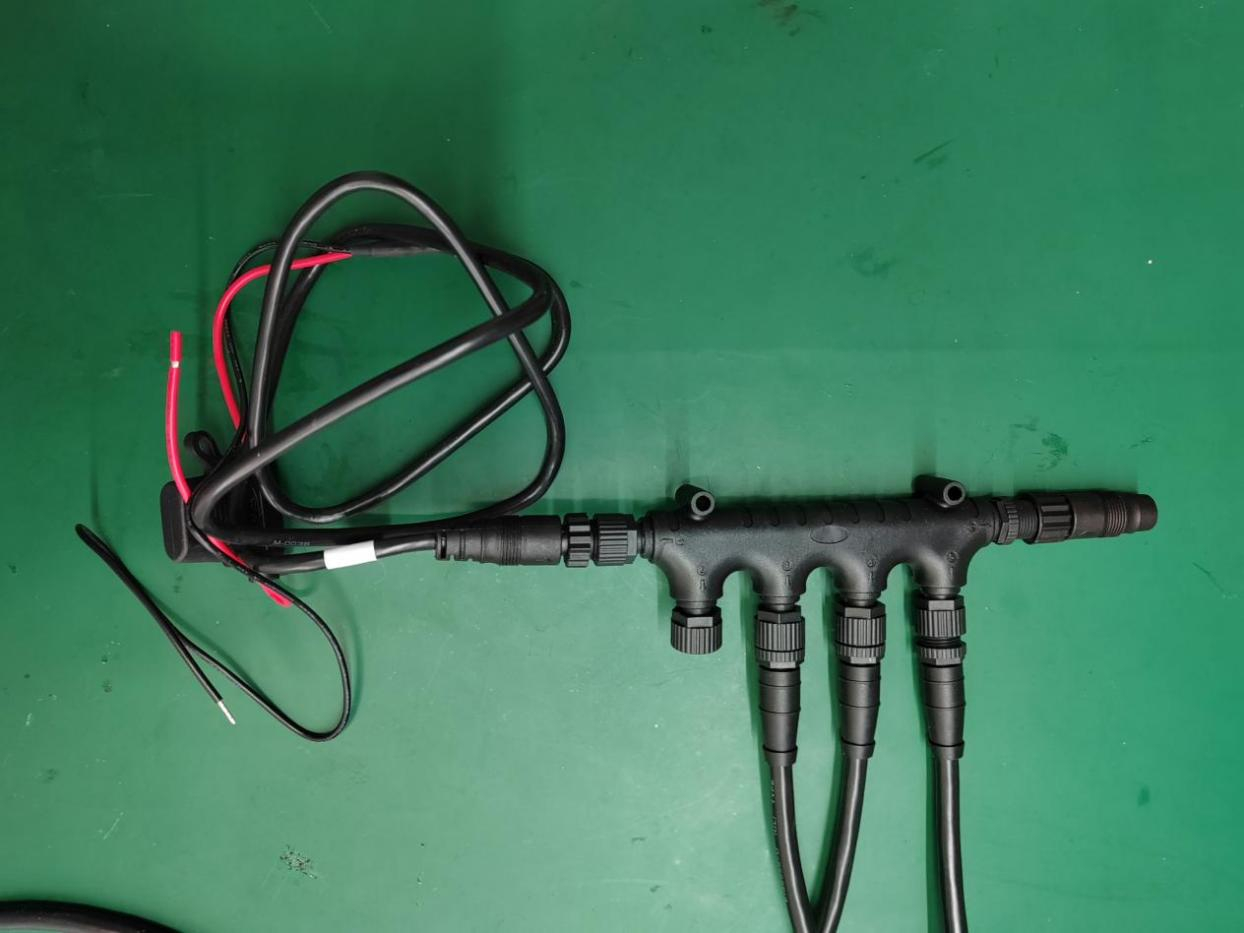

2） NMEA2000 Power Cable
3） CAN BUS Load
4） NMEA2000 Data Cable

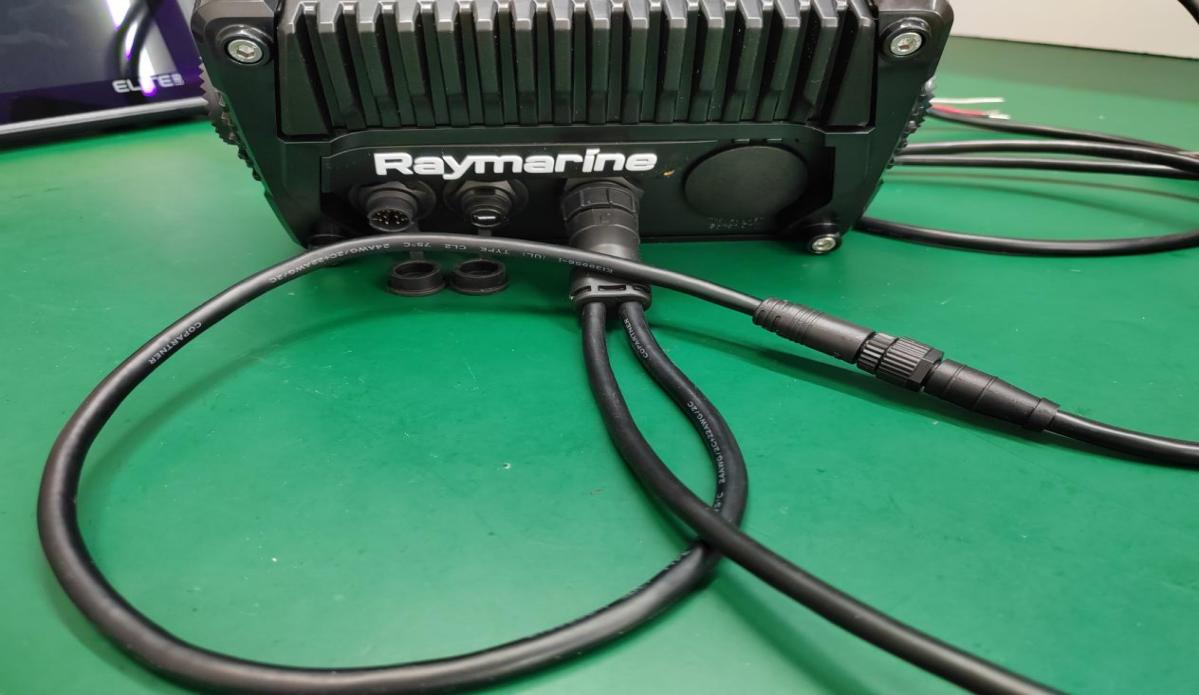

AXIOM PLUS7 Connection

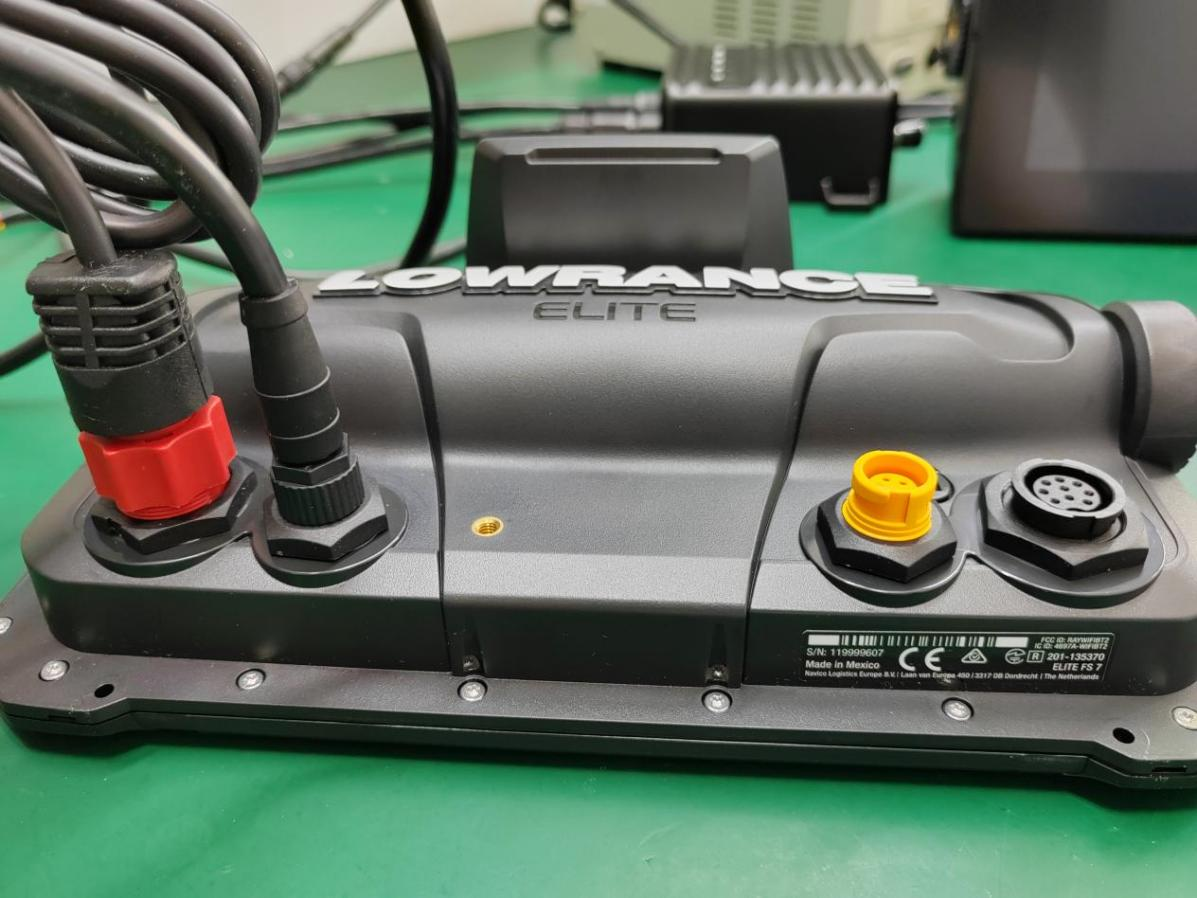

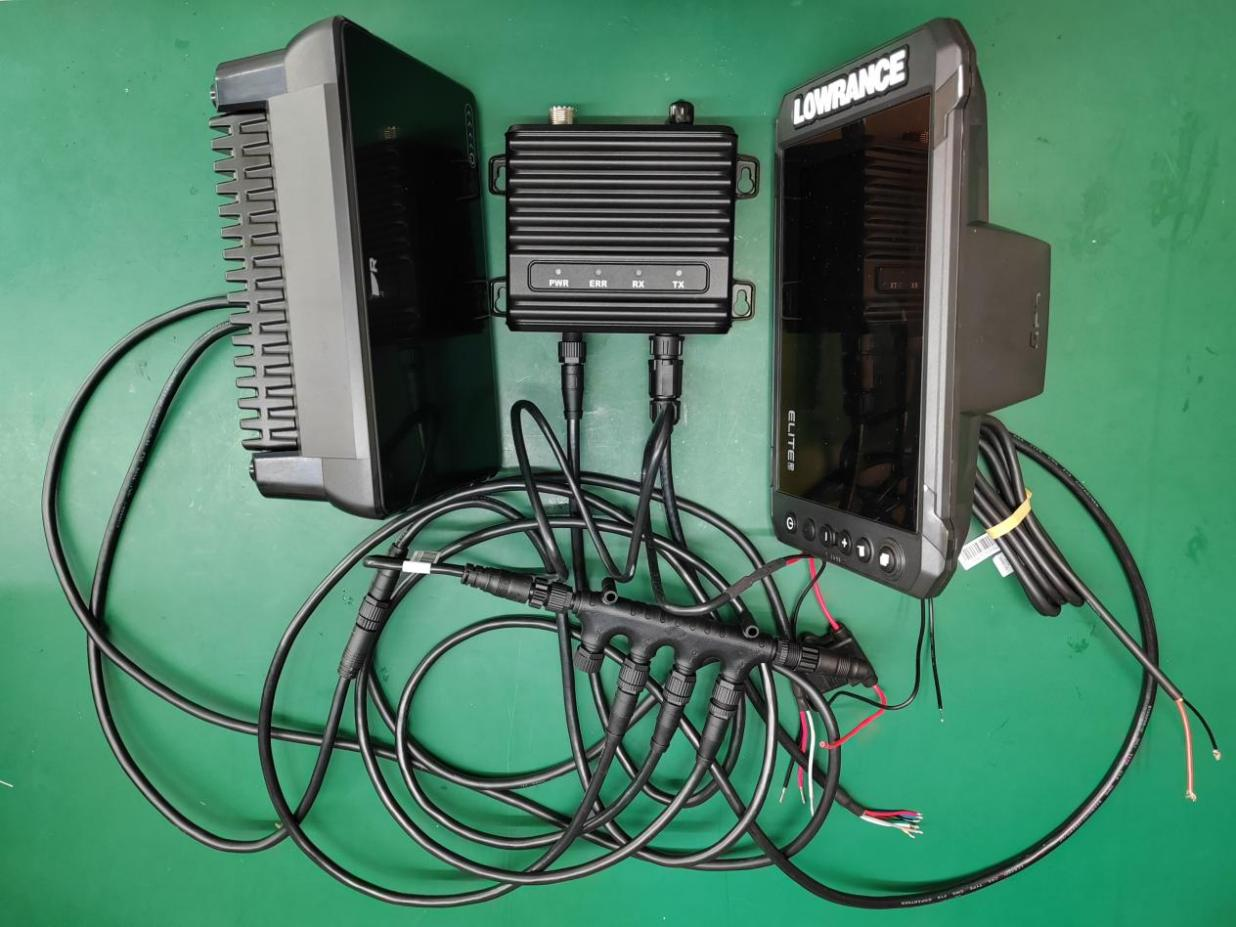

ELITE FS7 Connection

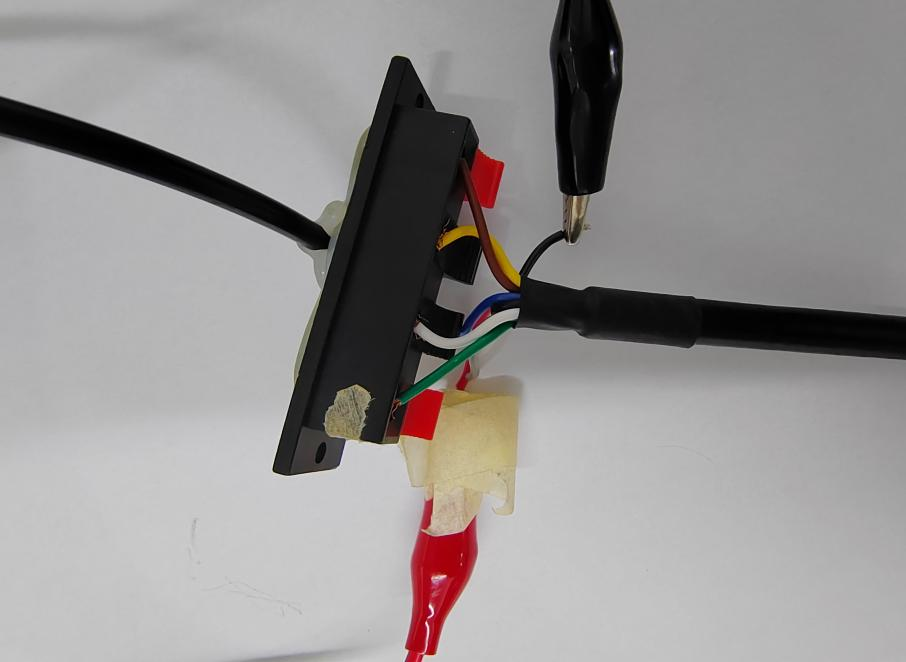

CAN BAS Connection

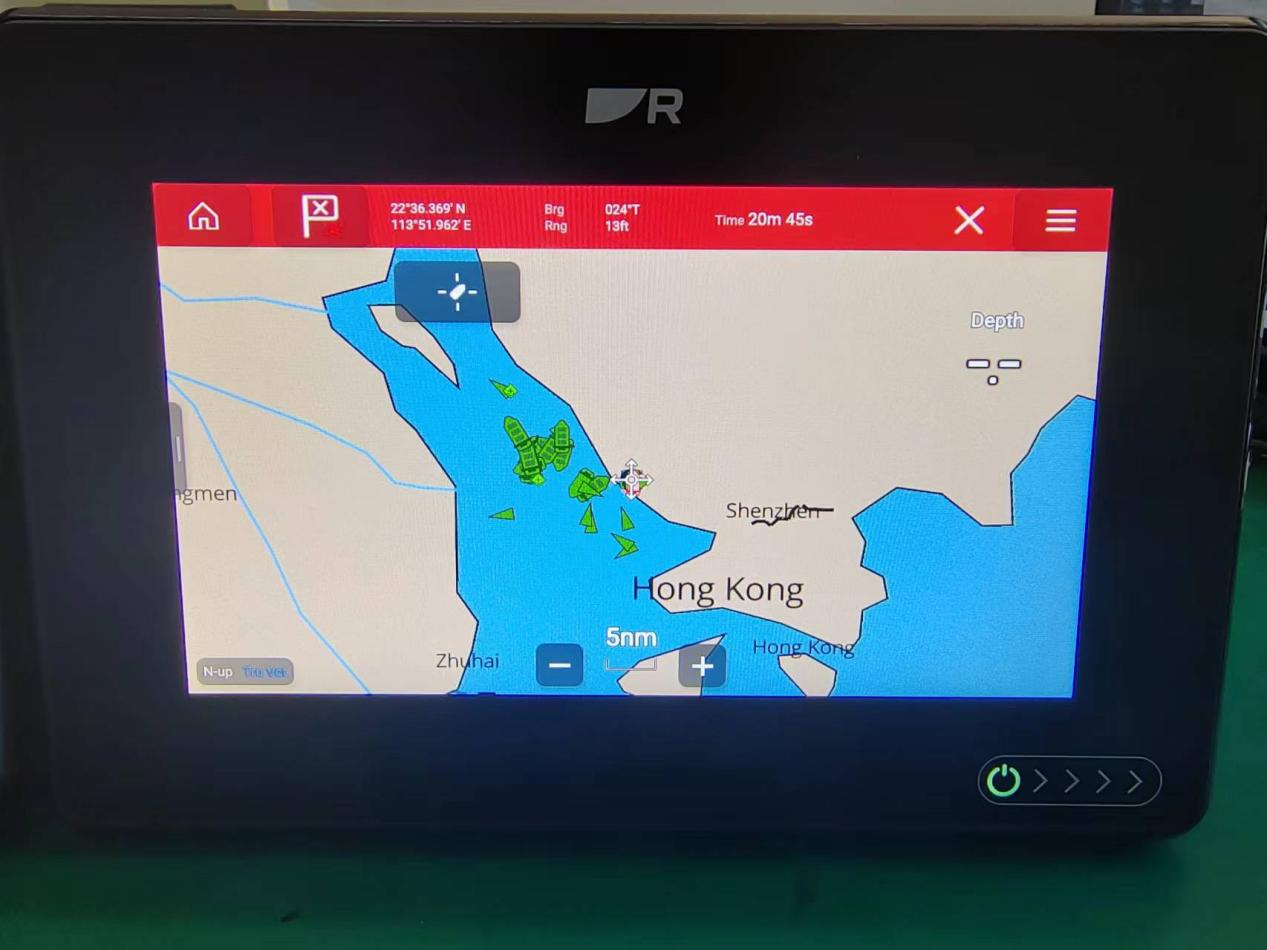

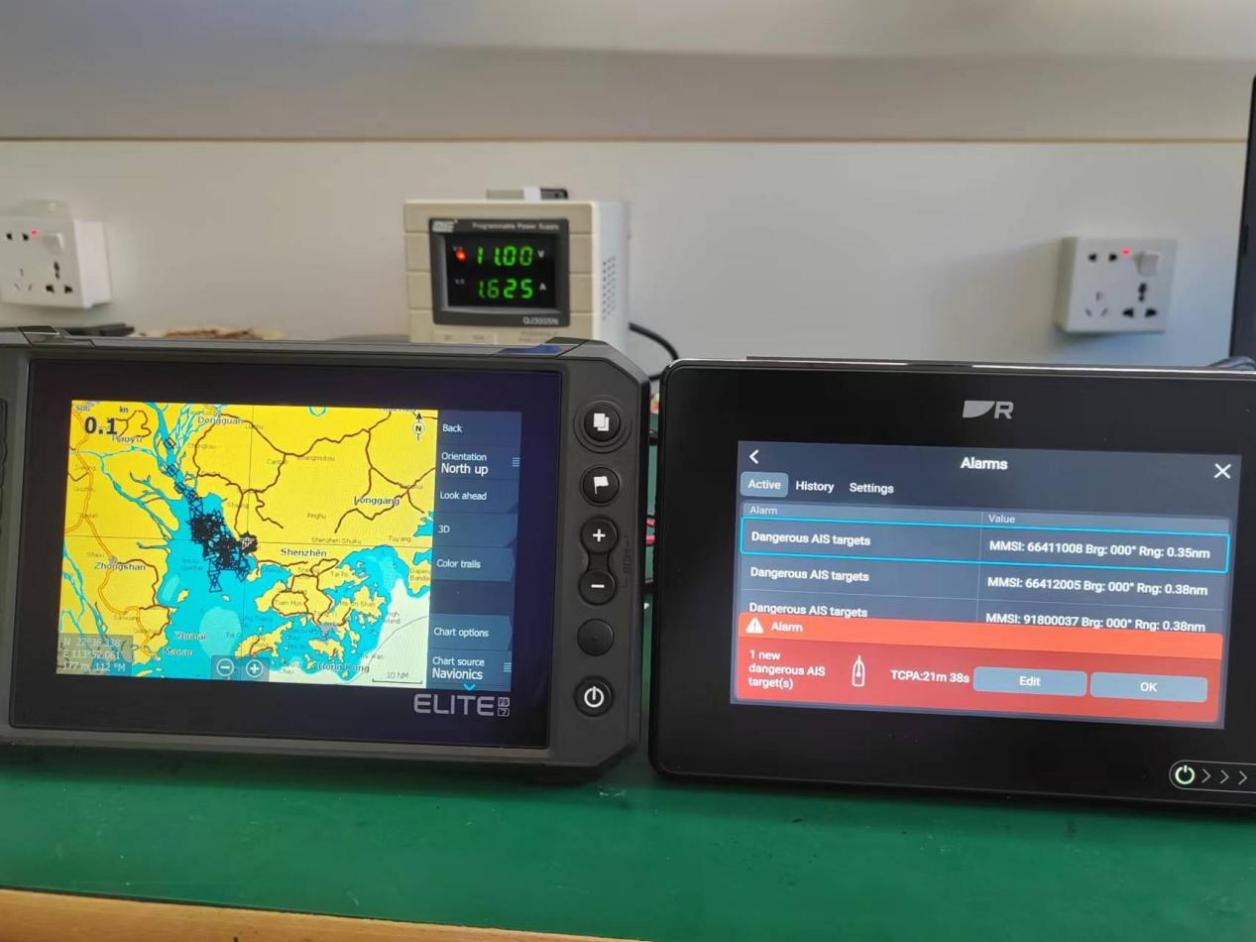

9.3.2 Testing Demo
