1. Product Introduction

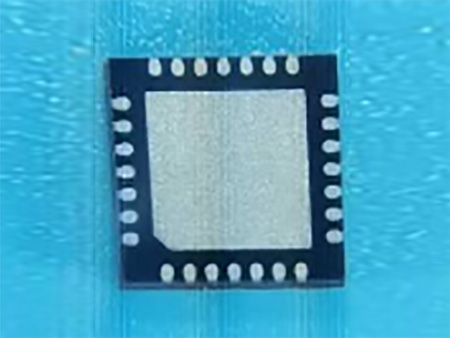

SCT3604 is a high-gain and high-efficiency power amplifier chip offering high performance and wideband in CW or FM signal amplifications, especially for VHF, UHF Walkie-Talkie, RFID and other FM, FSK, ASK applications in a frequency range from 130MHz to 1GHz. The chip is fabricated on silicon process. Its input and output matches are implemented on printed circuit board and can be easily adjusted to obtain optimum power and efficiency. The chip is assembled in a low thermal resistance 5x5 mm2 QFN28 package.

2. Features

l Single supply voltage from 2.5 to 6 V

l Wide operation frequency range from 130 MHz to 1 GHz

l High power gain up to 38 dB

l High output power up to 34 dBm at 4.2 V

l High power added efficiency of 55%

l 5x5 mm2 plastic QFN28 in 0.5mm pitch

3. TYPICAL APPLICATIONS

l Analog walkie-talkies, like Family Radio Service (FRS), General Mobile Radio Service (GMRS)

l Digital FDMA two way radio and trunking systems (DPMR, P25, DCR, NXDN, NDR)

l Digital TDMA two way radio and trunking systems (DMR, P25, PDT)

l Wireless data communication (FSK, AFSK, OOK, GFSK, MSK)

l RFID reader/writers

l Wireless sensor network and AdHoc application

l Remote control and sensing systems

l Commercial and consumer electronics

l Portable and battery powered equipments
